Deskripsi Produk

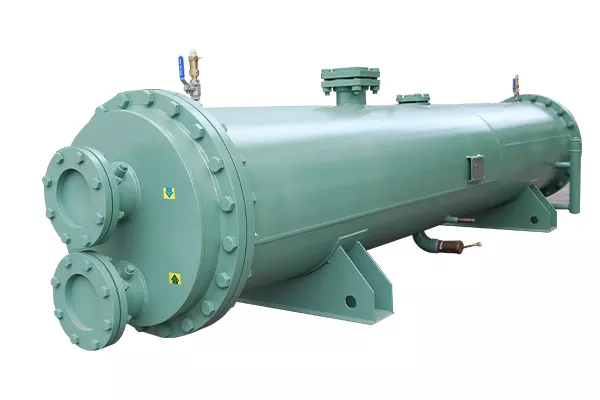

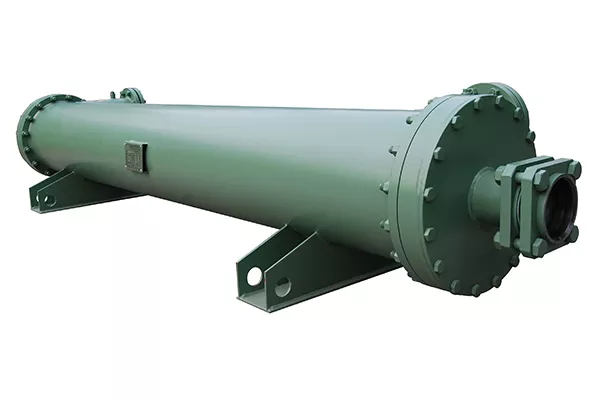

UAR has specialized in manufacturing shell and tube heat exchangers, including evaporators, condensers, oil separators, etc.

For UAR evaporators, it can be divided into Falling Film Evaporator, Flooded Evaporator and Dry type Evaporator.

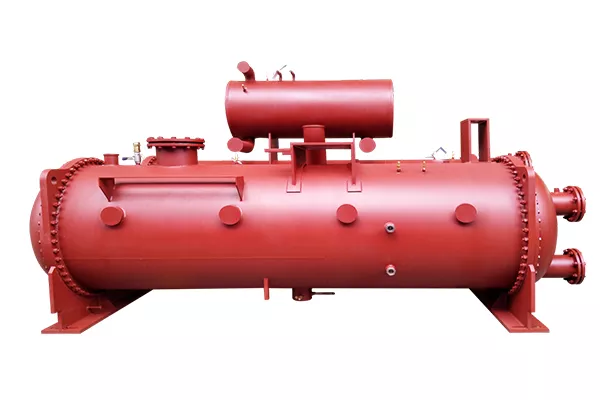

Falling Film Evaporator

Liquid sprayed from above is to form a thin film on the surface of the heat exchange tube to obtain the best heat transfer effect.

The liquid separation and defoaming device is national patented.

With no superheat requirement of refrigerant vapor the evaporation temperature can be greatly increased.

Achieve 30% higher heat transfer coefficient and 35% less refrigerant charge volume than flooded evaporators.

Suitable for screw, centrifugal, magnetic bearing and other types of compressor.

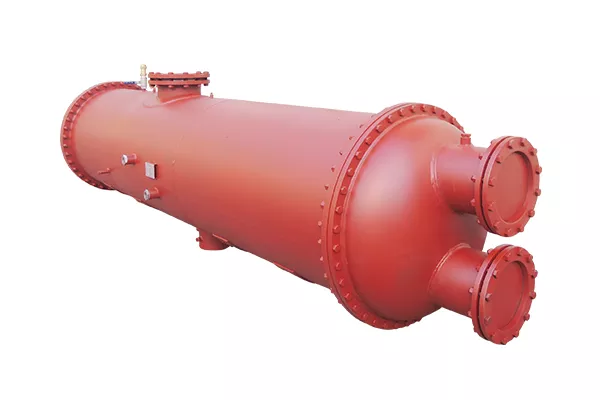

Flooded Evaporator

Adopted 1.1mm thickness heat exchange tube specially designed for flooded evaporators and T-shaped spiral heat exchange tube greatly increases the heat exchange area.

The internal structure device has got a number of national patents.

The water passes through the heat exchange tube and the refrigerant flows in the she: the gaseous refrigerant produced as the result of heat exchange between the liquid coolant and the liquid refrigerant will go directly into the compressor which greatly improves the heat exchange efficiency.

Suitable for screw, centrifugal, magnetic bearing and other types of compressor. The difference between the out et water temperature and the evaporation temperature is nearly 0and the resistance along the way is small.

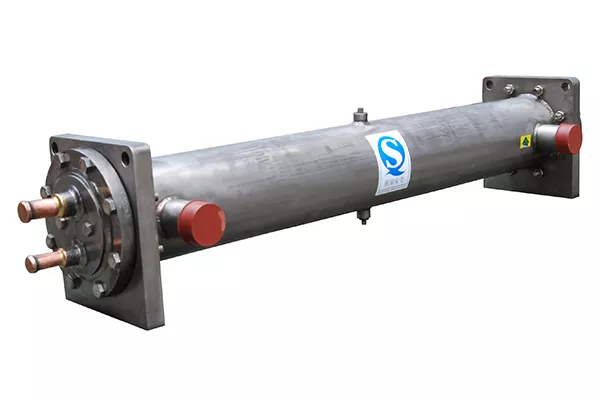

Dry-type Evaporator

A traditional type evaporator easy to control: the refrigerant evaporates in the tubes and the water cross flow in the shell High efficiency internal and externa grooved heat exchange tubes provide optimum heat exchange coefficient and service life.

Upgraded dry-type evaporator using spiral baffle plate to create cross flow of water Smaller in size and higher in heat exchange efficiency. Workable with all types of compressor.

Shell and tube evaporator parameters

Falling Film Evaporator (Standard Type)

Heat exchanger model	Nominal heat exchange capacity		Water inlet/outlet ?Unit?inch?	Refrigerant inlet ?Unit?inch?	Refrigerant outlet ?Unit?inch?	Product length A ?Unit?mm?	Product width B ?Unit?mm?	Product height C ?Unit?mm?	Weight ?Unit?kg?
	?Unit?KW?
	R22/R404A	R134a
UCP120A	422	338	4"	2"	4"	3467	720	880	800
UCP145A	510	408	4"	2"	4"	3467	720	880	820
UCP170A	598	478	5"	2"	4"	3467	720	880	850
UCP190A	668	535	5"	2-1/2"	5"	3518	850	978	1040
UCP220A	774	619	6"	2-1/2"	5"	3518	850	978	1100
UCP240A	844	675	6"	2-1/2"	5"	3518	900	978	1185
UCP255A	897	717	6"	2-1/2"	5"	4068	900	978	1220
UCP290A	1020	816	6"	2-1/2"	5"	4068	900	978	1240
UCP355A	1249	999	6"	2-1/2"	5"	4068	900	978	1296
UCP415A	1460	1168	8"	2-1/2"	5"	4068	920	990	1472
UCP480A	1688	1351	8"	2-1/2"	5"	4068	920	990	1998

Remarks?

1. Parameter of nominal heat exchange: evaporation temperature Te=4.5? , incoming water temperature Ti=12? , outgoing water temperature To=7? , degree of superheat 5? .

2. The refrigerant side max. allowable working pressure: 3.0MP, operating pressure: 2.5MPa; the water side, the max. allowable working pressure: 2.0MPa.

3. Water pressure drop less than 100KPa.

4. Customized materials or sizes are available upon request.

5. Any change of shape or size due to product improvement will not be further notified.

Flooded Evaporator (Standard Type)

Heat exchanger model	Nominal heat exchange capacity ?Unit?KW?	Water inlet/outlet ?Unit?inch?	Refrigerant inlet ?Unit?inch?	Refrigerant outlet ?Unit?inch?	Product length A ?Unit?mm?	Product width B ?Unit?mm?	Product height C ?Unit?mm?	Weight ?Unit?kg?
Heat exchanger model	R22/R134a/R404A	Water inlet/outlet ?Unit?inch?	Refrigerant inlet ?Unit?inch?	Refrigerant outlet ?Unit?inch?	Product length A ?Unit?mm?	Product width B ?Unit?mm?	Product height C ?Unit?mm?	Weight ?Unit?kg?
UCM100A	352	4"	1-3/8",2-1/8"	4"	2837	540	540	617
UCM120A	422	5"	1-3/8",2-1/8"	4"	2837	600	600	630
UCM140A	492	5"	1-3/8",2-1/8"	4"	3446	600	600	767
UCM160A	563	5"	1-3/8",2-1/8"	5"	3446	600	600	791
UCM180A	633	5"	1-3/8",2-1/8"	5"	3446	600	600	815
UCM200A	703	6"	1-3/8",2-1/8"	5"	3446	660	660	798
UCM210A	739	6"	1-3/8",2-1/8"	5"	3446	660	660	810
UCM240A	844	6"	2-1/8",1-5/8"	5"	3446	660	660	844
UCM250A	879	6"	2-1/8",1-5/8"	6"	3446	660	660	856
UCM280A	985	8"	2-5/8",1-5/8"	6"	3446	710	710	903
UCM290A	1020	6"	2-1/8",1-5/8"	5"	3446	710	710	915
UCM310A	1090	8"	2-5/8",1-5/8"	8"	3992	660	660	1210
UCM340A	1196	8"	2-1/8",1-5/8"	8"	3992	710	710	1346
UCM360A	1266	8"	2-5/8",1-5/8"	8"	3992	710	710	1357
UCM390A	1372	8"	2-1/8",1-5/8"	8"	3992	710	710	1391
UCM420A	1477	8"	2-5/8",1-5/8"	8"	3992	710	710	1427
UCM470A	1653	8"	2-5/8",1-5/8"	8"	4492	830	830	1589
UCM580A	2040	8"	4"	6"	4492	930	930	1740
UCM680A	2392	8"	5"	8"	4492	980	980	1920

Remarks:

Parameter of nominal heat exchange: evaporation temperature Te=4.5 ? , incoming water temperature Ti=12? , outgoing water temperature To=7? , degree of superheat 5? .

Operating conditions of water source: evaporation temperature Te=5? , incoming water temperature Ti=15? , outgoing water temperature To=8? , degree of superheat 5? ; in which heat exchange Q (water source) = 1.05 Q (nominal).

The refrigerant side max. allowable working pressure: 3.0MPa, operating pressure: 2.5MPa; the water side, the max. allowable working pressure: 2.0MPa.

Water pressure drop less than 100KPa.

Customized materials or sizes are available upon request.

Any change of shape or size due to product improvement will not be further notified.

Dry-type Single-circuit Evaporator (Standard Type)

Heat exchanger model	Nominal heat exchange capacity ?Unit?KW?			Water inlet/outlet ?Unit?inch?	Refrigerant inlet ?Unit?inch?	Refrigerant outlet ?Unit?inch?	Product length A ?Unit?mm?	Product width B ?Unit?mm?	Product height C ?Unit?mm?	Weight ?Unit?kg?
Heat exchanger model	R22	R134a	R407C	Water inlet/outlet ?Unit?inch?	Refrigerant inlet ?Unit?inch?	Refrigerant outlet ?Unit?inch?	Product length A ?Unit?mm?	Product width B ?Unit?mm?	Product height C ?Unit?mm?	Weight ?Unit?kg?
USH005A	18	14	16	1"	5/8?	7/8?	835	310	235	58
USH008A	28	23	25	1-1/2?	7/8?	1-3/8?	986	310	235	62
USH010A	35	28	32	2"	7/8"	1-3/8"	986	310	235	76
USH015A	49	39	44	2"	1-1/8"	1-5/8"	1286	310	235	105
USH020A	70	56	63	2"	1-3/8"	2-1/8"	1584	310	235	121
USH025A	88	70	79	2"	1-3/8"	2-1/8"	1834	310	235	136
USH030A	106	84	95	2-1/2"	1-3/8"	2-1/8"	1934	390	280	145
USH035A	123	98	111	2-1/2"	1-3/8"	2-1/8"	1934	390	280	154
USH040A	141	113	127	2-1/2"	1-3/8"	2-5/8"	1934	390	280	164
USH045A	158	127	142	2-1/2"	1-3/8"	2-5/8"	1934	390	280	175
UCH020A	70	56	63	2"	1-3/8"	2-1/8"	1934	390	280	151
UCH025A	88	70	79	2"	1-3/8"	2-1/8"	1934	390	280	157
UCH030A	106	84	95	2-1/2"	1-3/8"	2-1/8"	1934	390	280	163
UCH035A	123	98	111	2-1/2"	1-3/8"	2-1/8"	1934	390	280	169
UCH040A	141	113	127	2-1/2"	1-3/8"	2-5/8"	1934	420	340	226
UCH045A	158	127	142	2-1/2"	1-3/8"	2-5/8"	1934	420	340	232
UCH050A	176	141	158	2-1/2"	1-3/8"	2-1/8"	1934	420	340	238
UCH055A	193	155	174	2-1/2"	1-3/8"	2-1/8"	1934	420	340	244
USH050A	176	141	158	2-1/2"	1-3/8"	3"	2253	420	340	299
USH055A	193	155	174	2-1/2"	1-3/8"	3"	2253	420	340	311
USH060A	211	169	190	2-1/2"	1-3/8"	3"	2253	420	340	323
USH065A	229	183	206	3"	1-3/8"	3"	2653	420	340	328
USH070A	246	197	222	3"	1-3/8"	3"	2653	420	340	342
USH075A	264	211	237	3"	1-3/8"	3"	2653	420	340	354
USH080A	281	225	253	3"	1-3/8"	3"	2653	420	340	366
USH085A	299	239	269	3"	1-3/8"	3"	2653	420	340	370
UCH060A	211	169	190	2-1/2"	1-3/8"	3"	2653	420	340	300
UCH065A	229	183	206	3"	1-3/8"	3"	2653	420	340	312

Dry-type Single-circuit Evaporator (Standard Type) (continued)

Heat exchanger model	Nominal heat exchange capacity ?Unit?KW?			Water inlet/outlet ?Unit?inch?	Refrigerant inlet ?Unit?inch?	Refrigerant outlet ?Unit?inch?	Product length A ?Unit?mm?	Product width B ?Unit?mm?	Product height C ?Unit?mm?	Weight ?Unit?kg?
Heat exchanger model	R22	R134a	R407C	Water inlet/outlet ?Unit?inch?	Refrigerant inlet ?Unit?inch?	Refrigerant outlet ?Unit?inch?	Product length A ?Unit?mm?	Product width B ?Unit?mm?	Product height C ?Unit?mm?	Weight ?Unit?kg?
UCH070A	246	197	222	3"	1-3/8"	3"	2653	420	340	324
UCH075A	264	211	237	3"	1-3/8"	3"	2653	560	390	336
UCH080A	281	225	253	3"	1-3/8"	3"	2653	560	390	348
UCH085A	299	239	269	3"	1-3/8"	3"	2653	560	390	360
UCH090A	317	253	285	4"	1-3/8"	4"	2653	560	390	372
UCH095A	334	267	301	4"	1-3/8"	4"	2653	560	390	384
UCH100A	352	281	317	4"	1-3/8"	4"	2653	560	390	396
UCH105A	369	295	332	4"	1-3/8"	4"	2653	560	390	408
UCH110A	387	309	348	4"	1-3/8"	4"	2653	560	390	420
USH090A	317	253	285	4"	1-3/8"	4"	2653	560	390	340
USH095A	334	267	301	4"	1-3/8"	4"	2653	560	390	352
USH100A	352	281	317	4"	1-3/8"	4"	2653	560	390	364
USH105A	369	295	332	4"	1-3/8"	4"	2653	560	390	376
USH110A	387	309	348	4"	1-3/8"	4"	2653	560	390	388
USH115A	404	324	364	4"	1-3/8"	4"	2653	570	420	400
USH120A	422	338	380	4"	1-3/8"	4"	2653	570	420	412
USH125A	440	352	396	4"	1-3/8"	4"	2653	570	420	424
USH130A	457	366	411	4"	1-3/8"	4"	2653	570	420	436
UCH115A	404	324	364	4"	1-3/8"	4"	2653	570	420	432
UCH120A	422	338	380	4"	1-3/8"	4"	2653	570	420	447
UCH125A	440	352	396	4"	1-3/8"	4"	2653	570	420	472
UCH130A	457	366	411	4"	1-3/8"	4"	2653	570	420	497
UCH135A	475	380	427	4"	1-3/8"	4"	2653	570	420	522
UCH140A	492	394	443	4"	1-3/8"	4"	2653	570	420	547
UCH145A	510	408	459	5"	1-3/8"	4"	2653	590	480	524
UCH150A	528	422	475	5"	1-3/8"	4"	2653	590	480	544
UCH155A	545	436	491	5"	1-3/8"	4"	2653	590	480	565
UCH160A	563	450	506	5"	1-3/8"	4"	2653	590	480	585
UCH165A	580	464	522	5"	1-5/8"	5"	2653	590	480	605
UCH170A	598	478	538	5"	1-5/8"	5"	2653	590	480	629
UCH180A	633	506	570	5"	1-5/8"	5"	3310	590	480	665
UCH185A	651	521	586	5"	1-5/8"	5"	3310	590	480	675
UCH190A	668	535	601	5"	1-5/8"	5"	3310	590	480	685
UCH195A	686	549	617	5"	1-5/8"	5"	3310	590	480	695
UCH200A	703	563	633	6"	1-5/8"	5"	3310	670	530	714
UCH205A	721	577	649	6"	1-5/8"	5"	3310	670	530	723
UCH210A	739	591	665	6"	1-5/8"	5"	3310	670	530	732

Dry-type Double-circuit Evaporator (Standard Type)

Dry-type Single-circuit Evaporator (Standard Type) (continued)

Heat exchanger model	Nominal heat exchange capacity ?Unit?KW?			Water inlet/outlet ?Unit?inch?	Refrigerant inlet ?Unit?inch?	Refrigerant outlet ?Unit?inch?	Product length A ?Unit?mm?	Product width B ?Unit?mm?	Product height C ?Unit?mm?	Weight ?Unit?kg?
Heat exchanger model	R22	R134a	R407C	Water inlet/outlet ?Unit?inch?	Refrigerant inlet ?Unit?inch?	Refrigerant outlet ?Unit?inch?	Product length A ?Unit?mm?	Product width B ?Unit?mm?	Product height C ?Unit?mm?	Weight ?Unit?kg?
USH016B	56	45	51	2?	7/8?	1-3/8?	1386	310	235	105
USH020B	70	56	63	2"	7/8?	1-3/8?	1684	310	235	121
USH030B	106	84	95	2-1/2"	1-1/8"	1-5/8"	1684	310	235	136
USH035B	123	98	111	2-1/2"	1-1/8"	2-1/8"	2034	390	280	154
USH040B	141	113	127	2-1/2"	1-3/8"	2-1/8"	2034	390	280	164
USH045B	158	127	142	2-1/2"	1-3/8"	2-1/8"	2034	390	280	175
USH050B	176	141	158	2-1/2"	1-3/8"	2-1/8"	2353	420	340	299
USH055B	193	155	174	2-1/2"	1-3/8"	2-1/8"	2353	420	340	311
USH060B	211	169	190	2-1/2"	1-3/8"	2-1/8"	2353	420	340	323
UCH055B	193	155	174	2-1/2"	1-3/8"	2-1/8"	2353	560	390	294
UCH060B	211	169	190	2-1/2"	1-3/8"	2-1/8"	2353	560	390	300
UCH065B	229	183	206	3"	1-3/8"	2-1/8"	2353	560	390	307
UCH070B	246	197	222	3"	1-3/8"	2-1/8"	2353	560	390	314
USH065B	229	183	206	3"	1-3/8"	2-1/8"	2753	420	340	336
USH070B	246	197	222	3"	1-3/8"	2-1/8"	2753	420	340	342
USH075B	264	211	237	3"	1-3/8"	2-1/8"	2753	420	340	354
USH080B	281	225	253	3"	1-3/8"	2-1/8"	2753	420	340	366
USH085B	299	239	269	3"	1-3/8"	2-1/8"	2753	420	340	370
USH090B	317	253	285	4"	1-3/8"	3"	2753	560	390	340
USH095B	334	267	301	4"	1-3/8"	3"	2753	560	390	352
USH100B	352	281	317	4"	1-3/8"	3"	2753	560	390	364
USH105B	369	295	332	4"	1-3/8"	3"	2753	560	390	376
USH110B	387	309	348	4"	1-3/8"	3"	2753	560	390	388
UCH075B	264	211	237	3"	1-3/8"	2-1/8"	2753	560	390	336
UCH080B	281	225	253	3"	1-3/8"	2-1/8"	2753	560	390	348
UCH085B	299	239	269	3"	1-3/8"	2-1/8"	2753	560	390	360
UCH090B	317	253	285	4"	1-3/8"	3"	2753	560	390	372
UCH095B	334	267	301	4"	1-3/8"	3"	2753	560	390	384
UCH100B	352	281	317	4"	1-3/8"	3"	2753	560	390	396

Dry-type Double-circuit Evaporator (Standard Type) (continued)

Heat exchanger model	Nominal heat exchange capacity ?Unit?KW?			Water inlet/outlet ?Unit?inch?	Refrigerant inlet ?Unit?inch?	Refrigerant outlet ?Unit?inch?	Product length A ?Unit?mm?	Product width B ?Unit?mm?	Product height C ?Unit?mm?	Weight ?Unit?kg?
Heat exchanger model	R22	R134a	R407C	Water inlet/outlet ?Unit?inch?	Refrigerant inlet ?Unit?inch?	Refrigerant outlet ?Unit?inch?	Product length A ?Unit?mm?	Product width B ?Unit?mm?	Product height C ?Unit?mm?	Weight ?Unit?kg?
UCH105B	369	295	332	4"	1-3/8"	3"	2753	560	390	408
UCH110B	387	309	348	4"	1-3/8"	3"	2753	560	390	420
USH115B	404	324	364	4"	1-3/8"	3"	2753	570	420	400
USH120B	422	338	380	4"	1-3/8"	3"	2753	570	420	412
USH125B	440	352	396	4"	1-3/8"	3"	2753	570	420	424
USH130B	457	366	411	4"	1-3/8"	3"	2753	570	420	436
UCH115B	404	324	364	4"	1-3/8"	3"	2753	570	420	432
UCH120B	422	338	380	4"	1-3/8"	3"	2753	570	420	447
UCH125B	440	352	396	4"	1-3/8"	3"	2753	570	420	472
UCH130B	457	366	411	4"	1-3/8"	3"	2753	570	420	497
UCH135B	475	380	427	4"	1-3/8"	3"	2753	570	420	522
UCH140B	492	394	443	4"	1-3/8"	3"	2753	570	420	547
UCH145B	510	408	459	5"	1-3/8"	3"	2803	590	480	524
