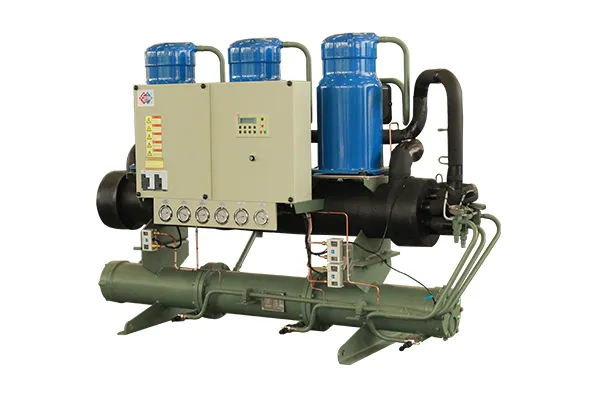

The water cooled scroll chiller unit adopts scroll compressors,one system replaces the original boiler and air conditioning system to save a lot of energy while reducing the initial investment in equipment. it can be used for cooling and heating both in commercial & industrial buildings which save energy by 30%-80% compared with a central air conditioner during operation.The unit can provide refrigerant such as R410A
China water cooled scroll chiller advantages:ODP value is 0, GWP value is 6, chemical properties are stable, environmental protection, can reduce 99.6%
Water cooled scroll chiller heat pump are quite easy for installation with one-key start and stop.
Product Description?
Unit function:
The water cooled scroll chiller 20STB Series Industrial Water Chillers are specially designed and manufactured for industrial production processes cooling. All models are equipped with chilled water storage tank and chilled water circulating pump. It can be used in parallel or modules with multiple units and installed in the production workshop. Units of 20WXI and above models are equipped with multiple compressors and equipped with multi-stage energy regulation, and are capable of supplying cold water centrally and are suitable for the small and mediumsized production sites.
Unit capacity:
The China water cooled scroll chiller This series is the products developed, designed and manufactured by H.Stars Group for the refrigeration, cold storage, food processing, quick freezing and industrial cooling. The product is manufactured by adopting the combination of famous brand compressors and electronic control components. It is equipped with high-efficiency fin condenser and evaporator. The unit is controlled by microcomputer and equipped with various protection functions which is high reliability, and can exert the highest efficiency in the actual working conditions.
Special customization:
According to the technological characteristics of different industries and different projects, integrated industrial units are tailored for users by Water cooled scroll chiller heat pump manufacturer.
Stable & Reliable:
The water cooled scroll industrial chiller 20STB Series Industrial Water Chillers are specially designed and manufactured for industrial production processes cooling. All models are equipped with chilled water storage tank and chilled water circulating pump.
Chiller Heat Pump Compressor: (Danfoss Brand)
The compressor of industrial scroll chiller adopts famous brand compressor with center bearing cap to achieve high energy efficiency and low sound level. The unit runs quieter and more efficient, with the scroll design of "contact-free and wear-free", it can reduce friction
Easy Operation:
The scroll water cooled chiller heat pump have One-key start and stop, intelligent Siemens PLC control
Specification
Scroll Water chiller & Heat Pump Standard Configuration Chart
Compressor
The unit adopts famous brand compressor with center bearing cap to achieve high energy efficiency and low sound level. The unit runs quieter and more efficient, with the scroll design of "contact-free and wear-free", it can reduce friction.
Shell and Tube Heat Exchanger
The copper tube of the evaporator adopts 1.1mm thick copper heat exchange tube, which ensures that all products meet the high requirements of high efficiency, energy saving, safety, strong antifouling ability and durability. According to the customer's use conditions and water quality factors, different materials of heat exchange tubes can be selected, and the fouling coefficient can be increased to enhance the heat exchange efficiency, ensuring the high efficiency and energy saving and service life of the unit. It is independently designed and manufactured with strict quality control. Configuring according to the place of use and process, it ensures that the heat transfer coefficient meets the design requirements.
Water cooled screw chiller & heat pump
Technical Parameters with Refrigerant R22
Refrigerant: R22 Power: 3? -380V-50Hz
| Model | 20STB-10WCI4 | 20STB-12.5WCI4 | 20STB-15WCI4 | 20STB-20WCI4 | 20STB-25WCI4 | 20STB-30WCI4 | 20STB-40WCI4 | 20STB-45WCI4 | |
| Cooling capacity kW | 34 | 42 | 53 | 68 | 84 | 106 | 126 | 159 | |
| Compressor power kW | 7 | 8 | 10 | 14 | 16 | 20 | 24 | 30 | |
| Energy control % | 0 100 |
0 50 100 |
0 33 66 100 |
||||||
| Condenser | Inlet pipe diamete | 1-1/2" | 2" | 2" | 2" | 2" | 2-1/2" | 2-1/2" | 2-1/2" |
| Water flow m3/h | 7 | 8 | 11 | 14 | 17 | 22 | 26 | 33 | |
| Water Side Max. Pressure Mpa | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | |
| Water pressure drop KPa |
29 | 31 | 41 | 56 | 56 | 58 | 55 | 56 | |
| Evaporator | Inlet pipe diameter in |
1-1/2" | 2" | 2" | 2" | 2" | 2-1/2" | 2-1/2" | 2-1/2" |
| Water flow m3/h |
6 | 7 | 9 | 12 | 14 | 18 | 22 | 27 | |
| Water Side Max. Pressure Mpa |
1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | |
| Water pressure drop KPa |
23 | 28 | 30 | 28 | 28 | 32 | 32 | 31 | |
| Running noise dB (A) | 60 | 61 | 62 | 63 | 64 | 65 | 66 | 67 | |
| Water tank capacity L | 180 | 180 | 180 | 270 | 270 | 270 | 270 | 270 | |
| Shipping Weight Kg | 440 | 480 | 520 | 680 | 740 | 840 | 980 | 1120 | |
Water cooled screw chiller & heat pump
Technical Parameters with Refrigerant R407C&R410A
Refrigerant: R407C Power: 3? -380V-50Hz
| Model | 20STB-10WCI4 | 20STB-12.5WCI4 | 20STB-15WCI4 | 20STB-20WCI4 | 20STB-25WCI4 | 20STB-30WCI4 | 20STB-40WCI4 | 20STB-45WCI4 | |
| Cooling capacity kW | 28 | 35 | 43 | 56 | 70 | 86 | 105 | 129 | |
| Compressor power kW | 6 | 8 | 10 | 13 | 15 | 19 | 23 | 29 | |
| Energy control % | 0 100 |
0 50 100 |
0 33 66 100 |
||||||
| Condenser | Inlet pipe diamete | 1-1/2" | 2" | 2" | 2" | 2" | 2-1/2" | 2-1/2" | 2-1/2" |
| Water flow m3/h | 6 | 7 | 9 | 12 | 15 | 18 | 22 | 27 | |
| Water Side Max. Pressure Mpa | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | |
| Water pressure drop KPa |
29 | 31 | 41 | 56 | 56 | 58 | 55 | 56 | |
| Evaporator | Inlet pipe diameter in |
1-1/2" | 2" | 2" | 2" | 2" | 2-1/2" | 2-1/2" | 2-1/2" |
| Water flow m3/h |
5 | 6 | 7 | 10 | 12 | 15 | 18 | 22 | |
| Water Side Max. Pressure Mpa |
1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | |
| Water pressure drop KPa |
23 | 28 | 30 | 28 | 28 | 32 | 32 | 31 | |
| Running noise dB (A) | 60 | 61 | 62 | 63 | 64 | 65 | 66 | 67 | |
| Water tank capacity L | 180 | 180 | 180 | 270 | 270 | 270 | 270 | 270 | |
| Shipping Weight Kg | 440 | 480 | 520 | 680 | 740 | 840 | 980 | 1120 | |
Refrigerant: R410A Power: 3? -380V-50Hz
| Model | 20STB-50WCI4 | 20STB-75WCI4 | 20STB-90WCI4 | 20STB-100WCI4 | |
| Cooling capacity kW | 178 | 269 | 320 | 356 | |
| Compressor power kW | 33 | 50 | 59 | 66 | |
| Energy control % | 0 50 100 | 0 33 66 100 | 0 25 50 75 100 | ||
| Condenser | Inlet pipe diamete | 2-1/2" | 3" | 4" | 4" |
| Water flow m3/h | 36 | 55 | 65 | 73 | |
| Water Side Max. Pressure Mpa | 1 | 1 | 1 | 1 | |
| Water pressure drop KPa |
58 | 60 | 62 | 63 | |
| Evaporator | Inlet pipe diameter in |
2-1/2" | 3" | 4" | 4" |
| Water flow m3/h |
31 | 46 | 55 | 61 | |
| Water Side Max. Pressure Mpa |
1 | 1 | 1 | 1 | |
| Water pressure drop KPa |
32 | 33 | 34 | 35 | |
| Running noise dB (A) | 68 | 69 | 70 | 71 | |
| Water tank capacity L | 500 | 500 | 500 | 500 | |
| Shipping Weight Kg | 1050 | 1200 | 1350 | 1400 | |
Water cooled screw chillers Dimension
| Model | A | B | C | D | E |
| 20STB-(N/V)10WCI4 | 1200 | 600 | 1200 | 600 | 500 |
| 20STB-(N/V)12.5WCI4 | 1300 | 600 | 1200 | 600 | 500 |
| 20STB-(N/V)15WCI4 | 1500 | 600 | 1320 | 750 | 400 |
| Model | A | B | C | D | E |
| 20STB-(N/V)20WCI4 | 1900 | 675 | 1200 | 900 | 400 |
| 20STB-(N/V)25WCI4 | 1900 | 600 | 1220 | 900 | 400 |
| 20STB-(N/V)30WCI4 | 2200 | 600 | 1430 | 900 | 500 |
| 20STB-(N/V)50WCI4 | 2250 | 800 | 1600 | 1300 | 600 |
| Model | A | B | C | D | E |
| 20STB-(N/V)40WCI4 | 2250 | 800 | 1600 | 1300 | 600 |
| 20STB-(N/V)45WCI4 | 2500 | 800 | 1600 | 1300 | 600 |
| 20STB-(N/V)75WCI4 | 2600 | 900 | 1650 | 1450 | 600 |
| 20STB-(N/V)90WCI4 | 2700 | 800 | 1550 | 1450 | 650 |
| 20STB-(N/V)100WCI4 | 2700 | 800 | 1550 | 1600 | 650 |
Product show( Installation Pictures)?
Our Services?
1. After sale service: All of our machine provide long time after-sale service .
2. We accept OEM orders, processing according to buyer’s samples or drawing
3. On-time shipment
4. Product quality protection
5. Payment protection.
Application field: Industrial and commercial field
Packaging & Shipping?
for more information pls contact us info@jualkomponen.com
