Rp1.650.000

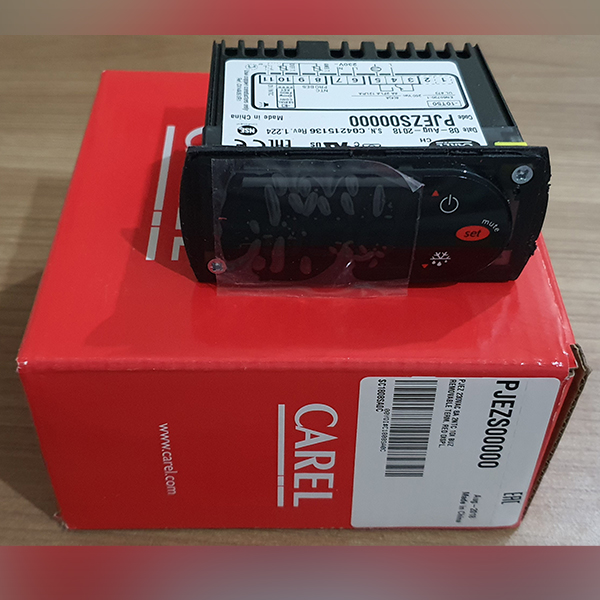

PJEZS00000 – REFRIGERATION CONTROLLER 1 RELAY: COMPRESSOR (8 A), 2 NTC PROBES
Kami hanya menyediakan produk 100% original dengan dukungan garansi resmi dari vendor.
Pengiriman tersedia untuk seluruh Indonesia dan internasional dengan proses yang aman dan terpantau.
Setiap transaksi diproses melalui sistem yang aman dan terenkripsi untuk menjaga keamanan data dan pembayaran Anda.
| Technical specifications | |
| power supply (*) | 230 Vac +10 /-15% 50/60 Hz; 115 Vac +10 /-15% 50/60 Hz |
| rated power | 1,5 VA |
| inputs (*) | NTC or PTC probes 1 or 3 inputs. Digital input as alternative to third probe |
| relay outputs (*) | 2 HP relay UL: 12 to 12 FLA 72 LRA, EN60730-1: 10(10) A 250 Vac (**) 16 A relay UL: 14 A Res. EN60730-1: 14(2) A or 10(4) A (N.O. only) 5FLA, 30LRA 250 Vac, C300 8 A relay UL: 8 A Res. 2 FLA 12 LRA, EN60730-1: 6(2) A or 8(3) A (N.O. only) 5 A relay UL: 5 A Res. 1 FLA 6 LRA EN60730-1: 5(1) A |
| type of probe (*) | Std CAREL NTC 10 KΩ at 25 °C, Std CAREL PTC 985 Ω at 0 °C |
| connections (*) | screw terminals for cables with cross-sect. from 0.5 mm2 to 1.5 mm2. Plug-in terminals for screw blocks or with crimped contact (cable cross-sect. up to 2.5 mm2). Rated maximum current per terminal 12 A. |
| assembly (*) | terminal: using screws from the front panel or with rear brackets. Interface: wall mounting, 4 screws, spacing 101×151 mm |
| display | 3 digit LED display with sign (-199 to 999) and decimal point; six status LEDs |
| operating conditions | -10T50 °C – humidity <90% rH non-condensing |
| storage conditions | -20T70 °C – humidity <90% rH non-condensing |
| range of measurement | -50T90 °C (-58T194 °F) – resolution 0.1 °C/°F |
| front panel index of protection | panel installation with IP65 gasket |
| case | plastic terminal, 81x36x65 mm |
| classification according to protection against electric shock | Class II when suitably integrated |
| environmental pollution | normal |
| PTI of the insulating material | 250 V |
| period of stress across the insulating parts | long |
| category of resistance to heat and fire | category D (UL94 – V0) |
| immunity against voltage surges | category 1 |
| type of action and disconnection | 1C relay contacts |
| no. of relay automatic operating cycles (*) | EN60730-1: 6(2) A, 2(2) A, 5(1) A and 10(10) A: 100,000, 14(2) A: 30,000. UL: (250 Vac) 30,000 operations |
| software class and structure | Class A |
| cleaning the instrument | Only use neutral detergents and water. |
