EVD0000400 EVD400 UNIVERSAL (TLAN) HARGA BELUM TERMASUK PPN

CAREL CVSTDUMOR0 USB/RS485 CONVERTER WITH 3-PIN SCREW CONNECTOR HARGA BELUM TERMASUK PPN

PCO1000WD0 PCO WEB SE, ETHERNET CARD FOR IP PROTOCOLS READY STOCK

SER-20 5X5 ODF 805029

HUBA CONTROL PRESSURE TRANSMITTER 506.933A04001W p rel: 0....34.5 bar OUT : ratiom 10...90% RL> 10kOhm Harga belum termasuk PPN

SPORLAN EBSSE -7-1/2-C 5x7 ODF HARGA BELUM TERMASUK PPN

EVD0000E20 EVD EVOLUTION UNIVERSAL (RS485/MODBUS)   HARGA BELUM TERMASUK PPN

TXV EBSVE-15-CP100 5x7 ODF 5 KAPASITAS 15 TR  REFRIGERANT R22/R407C HARGA BELUM TERMASUK PPN

HOTGAS BYPASS ADRHE 3 0/80 ODF 4 SPORLAN

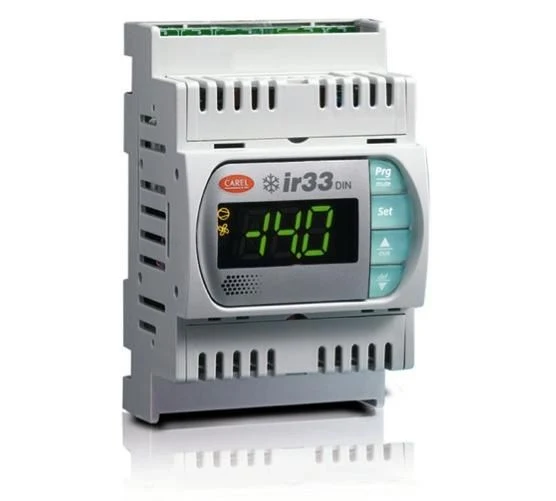

DN33W7LR20 DN33 UNIV 2NTC/PTC/PT1000, 2DO, BUZ, IR, 12-24VAC 12-30VDC Harga belum termasuk PPN

  DPWC111000 WALL SENSOR TEMP. -10T60GR.C. (OUT RES. NTC.) / HUMID. RH 10-90% (OUT 0-1VDC - 4-20MA) Harga belum termasuk PPN HARGA BELUM TERMASUK PPN

DPWC110000 WALL SENSOR TEMP. -10T60GR.C. (OUT 0- 1VDC - 4-20MA) / HUMID. RH 10-90% (OUT 0-1VDC - 4-20MA) HARGA BELUM TERMASUK PPN

TXV SPORLAN TYPE EBSSE-6C 5x7 ODF 5 KAPASITAS 6 TR REFRIGERANT R404A

NTC015WFOO SENSOR NTC WF IP67 -50Tl05 FAST READING, CABLE 1.5M HARGA BELUM TERMASUK PPN

The EVD0000UC0 Ultracap module is an optional external backup device for the EVDEvo used to close the valves in the event of mains power failures. The module guarantees temporary power to the EVDEvo (single or twin) in the event of power failures, for enough time to immediately close the connected electronic valves (one or two).

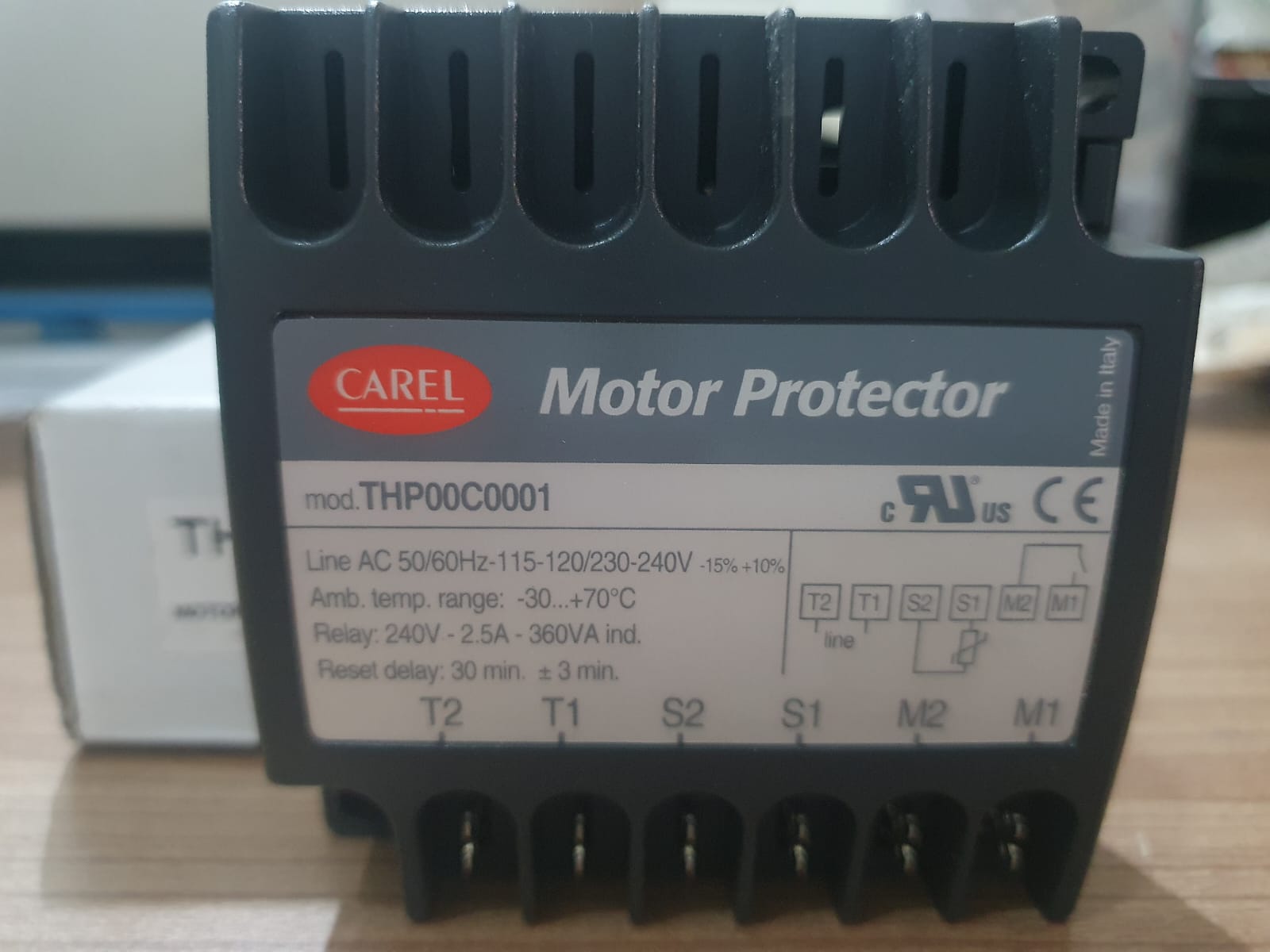

The THP motor protection module has been especially designed for scroll compressors. According to the DIN 44081/082 standards, up to 9 PTC temperature sensors, with different rated response temperatures, can be connected in series to the input of the measurement circuit. "Rated temperature" refers to the temperature above which the resistance of the PTC increases very quickly. As soon as the temperature in one of the monitored areas exceeds the rated response temperature of the corresponding PTC sensor, the THP motor protector module is activated, and consequently de-energises the relay. When the protector is activated a timer is started; the protection mechanism can only be disabled 30 minutes after activation, and when the PTC signals (the resistance of the sensors) have fallen below the reset threshold.

This Version of Display Has a Fixed language: English   This is a removable plug and play Display for all models of EVD Evolution Drivers, so it can be mounted and removed at any time (except during parameters loading/downloading and driver reset).   The semi-graphical LCD graphic display makes possible the configuration of the EVD driver in an extremely simple way. There will be only 4 parameters required to be configured:   - The installation application (e.g. Display cabinet, Cold room, Chiller etc.) - The refrigerant of the circuit - The type of Electronic Expansion Valve - Probes used in the installation

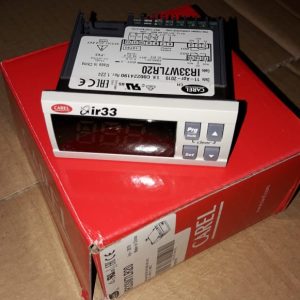

IR33W7LR20- IR33 Universal 2 relays version, 12 to 24 Vac (12 to 30 Vdc) Replacement Controller for the old IR32W00000 Description: 2 relays version, 12 to 24 Vac (12 to 30 Vdc) Total Number of Relays: 2 Power Input (AC): 12 to 24 Vac (12 to 30 Vdc) Operating Conditions: 10 to 60 ºC Humidity (Non-Condensing): <90% rh Storage Conditions: 20T70 ºC, <90% rH non-condensing Digital Output: 3 digit with decimal point & sign Installation: Flush mount Index of Protection: IP65 Options and Accessories: IROPZ48500, RS485 Serial Card, IROPZKEY00, Parameter Programming Key

SPKC002310 - IP67, 2 m cable with co-moulded PACKARD connector for SPKT Harga Belum Termasuk PPN

PRESS.TRASD.4-20MA 0 ... 44,8 BARG (0 ... 650 PSIG) SEALED GAGE 8-28V PACKARD 7/16INCH FEMALE HARGA BELUM TERMASUK PPN

PARKER SPORLAN C-164S FILTER DRYER SOLDER 4/8" HARGA BELUM TERMASUK PPN

Pipe connections: ODF 42-42 ODF (welded copper fittings) Capacity: 1616Kw based on R410a, 5°C Evap, 45°C Cond, 5K Sub Cooling Compatible refrigerants: R22, R134a, R404A, R407C,R410A, R417A, R507A, R744, R290, R600, R600a Number of closure steps: 500 Number of regulation steps: 480 Sight Glass built in the valve  External Motor: replaceable (available as a spare part) Flow direction: Bi-directional (1 Valve suitable for reversible cycles) Perfect closure: No need for solenoid valve.

Pipe connections: ODF 28-35 ODF (welded copper fittings) Capacity: 380Kw based on R410a, 5°C Evap, 45°C Cond, 5K Sub Cooling Compatible refrigerants: R22, R134a, R404A, R407C,R410A, R417A, R507A, R744, R290, R600, R600a Number of closure steps: 500 Number of regulation steps: 480 Sight Glass built in the valve  External Motor: replaceable (available as a spare part) Flow direction: Bi-directional (1 Valve suitable for reversible cycles) Perfect closure: No need for solenoid valve.

Pipe connections: ODF 35-35 ODF (welded copper fittings) Capacity: 816Kw based on R410a, 5°C Evap, 45°C Cond, 5K Sub Cooling Compatible refrigerants: R22, R134a, R404A, R407C,R410A, R417A, R507A, R744, R290, R600, R600a Number of closure steps: 500 Number of regulation steps: 480 Sight Glass built in the valve  External Motor: replaceable (available as a spare part) Flow direction: Bi-directional (1 Valve suitable for reversible cycles) Perfect closure: No need for solenoid valve.

Pipe connections: ODF 12- 12 ODF (welded copper fittings) Capacity: 28.4Kw based on R410a, 5°C Evap, 45°C Cond, 5K Sub Cooling Compatible refrigerants: R22, R134a, R404A, R407C,R410A, R417A, R507A, R744, R290, R600, R600a Number of closure steps: 500 Number of regulation steps: 480 NO Sight Glass External Motor: replaceable (available as a spare part) Flow direction: Bi-directional (1 Valve suitable for reversible cycles) Perfect closure: No need for solenoid valve. Equipercentile variation of refrigerant flow-rate: ensures high precision control at low flow-rates. An online selection tool for the ExV Valves is available HERE. Before you can use this tool, will need to create a UserID and passwords on KSA.

SPKT0013R0 - Ratiometric Pressure Transducer with female fitting 0 to 5 Vdc, -1 to 9.3 bar (0 to 150 psiA) with packard connector The CAREL electronic pressure probes have been developed for the application in the refrigeration and air conditioning sectors. The ratiometric version is available in 5 different ranges of pressure, as following.

• Electronic controller for normal and high temperature static refrigeration units • 115/230 Vac switching power supply • 16 A compressor relay • Management of NTC (-50 to +90°C) and PTC (-50 to +150°C) sensors • Simple and intuitive installation and confi guration • 4 pre-loaded confi gurations for the most common refrigeration applications

The EVD evolution series of controllers for electronic valves is the latest step in the development of the famous CAREL drivers for superheat control. Compared to the standard EVD, this instrument adds advanced functions and a new user interface that makes it even easier to use and configure. Main functions: • Control of Carel valves as well as Sporlan, Alco and Danfoss • pLAN Protocol • superheat control with auxiliary protectors - MOP, LOP, low superheat • assisted start-up procedure (just 4 parameters) • connection diagram visible on the display • multilanguage graphic display, with “help” on the various parameters • management of multiple units of measure • user management with passwords to access different levels of configuration • copy parameters to other EVDs using the display • LEDs for monitoring the main parameters • use of ratiometric or 4-20mA transducers (the latter shared between several drivers) • second digital input for defrost management • possibility to use backup probes Combined with the CAREL ExV series electronic expansion valves, the EVD evolution driver forms an integrated control system for the evaporator that optimises operation and achieves high levels of energy saving.

FLOS000000 - Flooding Detector Pinhole sensor The new flood detecting device is able to sense the presence of water in an environment.  It is generally used to protect against flooding in computer rooms, offices, laboratories, special environments. It is made up of a detector (normally fitted on the electrical panel) and a sensor (installed in the position being checked). When the sensor is wet by the water, the alarm is automatically activated on the detector, switching the status of the relay.

NTC015HT00 SENSOR NTC HT IP55 0Tl50 1.5M CABLE HARGA BELUM TERMASUK PPN

SENSOR NTC WH IP68 -50T105 CABLE 3M

Pressure range: 0 to 17.3 bar (0 to 250 psi) Signal: 0 to 5 Vdc, with packard connector Fitting: Female fitting, Internal thread Material: Brass Separation with plastic membrane Compatible Fluids: R12, R22, R134A,R404A, R407C, R410A, R502, R507, R744, HFO 1234ze Not compatible with: R717 (ammonia), not to be used with water and glycol Weight 30 g (typical) Rated current draw <10 mA@5.5Vdc (8.5 mA typical) Ingress protection IP65 with mechanical protection IP67 with electrical connector plugged in.

SPKT0033R0 - Ratiometric Pressure Transducer with female fitting 0 to 5 Vdc, 0 to 34.5 bar (15 to 515 psiA) with packard connector The CAREL electronic pressure probes have been developed for the application in the refrigeration and air conditioning sectors. The ratiometric version is available in 5 different ranges of pressure, as following.

SPKT0031C0 - Pressure Transducer with female fitting 0 to 30 bar relative, 4 to 20 mA (15 to 450 psiA) with packard connector The CAREL pressure electronic-probes have been developed for the application in the refrigeration and air conditioning sectors. They are available with two types of mechanical mount, one male and the other female. The output signal of the probes is in current (4 to 20 mA). Direct current supply is possible (8 to 28 Vdc).

PJEZS00000 - Refrigeration controller 1 relay: compressor (8 A), 2 NTC probes, 1 digital input, removable terminals - normal temperature PJEZ* (models S, C, Y and X) represent a range of electronic microprocessor controllers with LED display developed for the management of refrigerating units, display cabinets and showcases. Models PJEZS* are designed for the management of static refrigerating units (no fan on the evaporator) operating at temperatures above 0°C. Models PJEZC* are designed for the management of low temperature ventilated refrigerating units. Finally, models PJEZ(Y, X)* are designed for the management of static refrigerating units (no fan) operating at low temperatures. Note: model Y= relays connected electronically internally; model X= independent relays.

PJEZC00000 - Refrigeration controller 3 relays: compressor (8 A), defrost (8 A), fan (8 A), 2 NTC probes, 1 digital input, removable terminals - low temperature ventilated units This part number has replaced the PJ32C00000 which is now phased out PJEZ* (models S, C, Y and X) represent a range of electronic microprocessor controllers with LED display developed for the management of refrigerating units, display cabinets and showcases. Models PJEZS* are designed for the management of static refrigerating units (no fan on the evaporator) operating at temperatures above 0°C. Models PJEZC* are designed for the management of low temperature ventilated refrigerating units. Finally, models PJEZ(Y, X)* are designed for the management of static refrigerating units (no fan) operating at low temperatures. Note: model Y= relays connected electronically internally; model X= independent relays.
